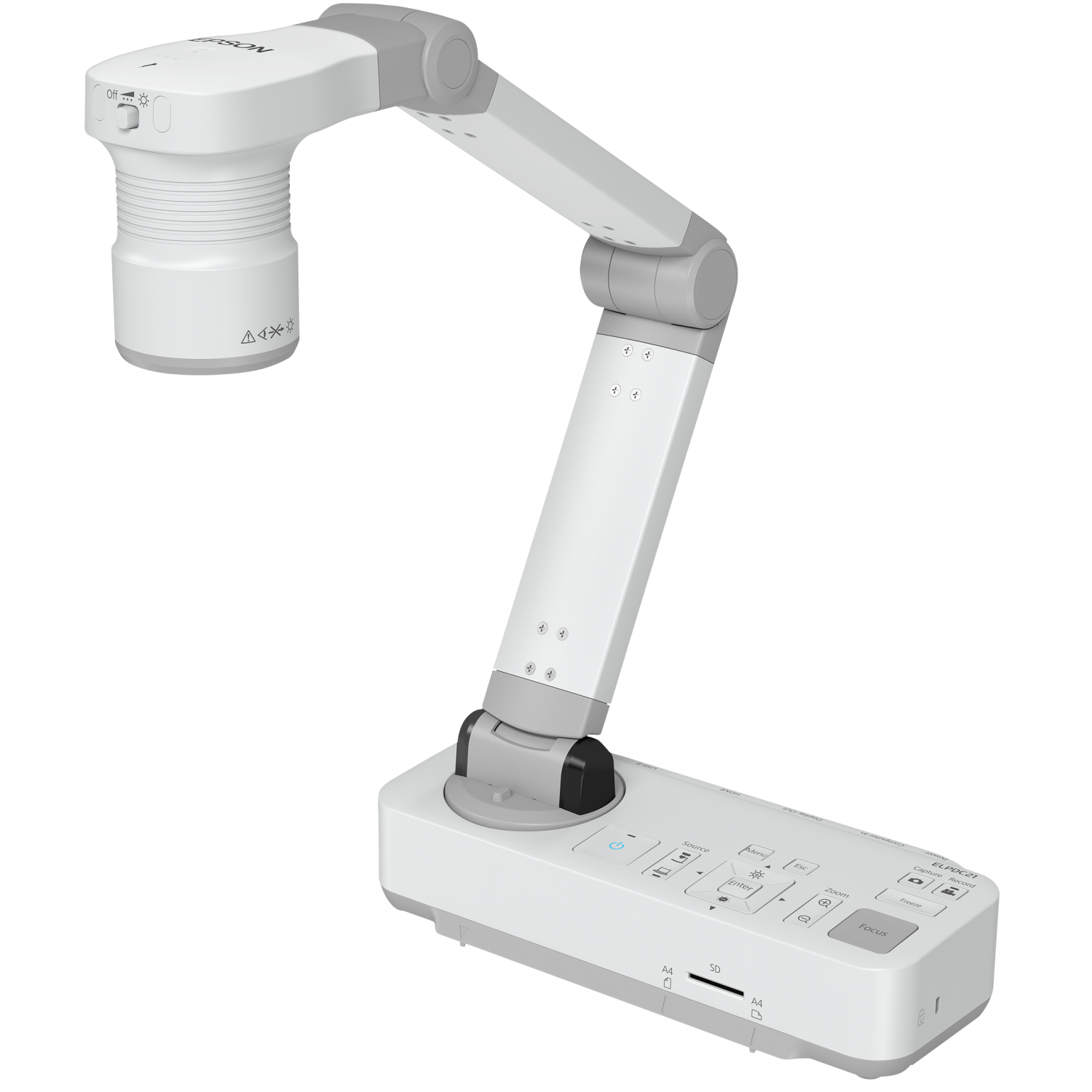

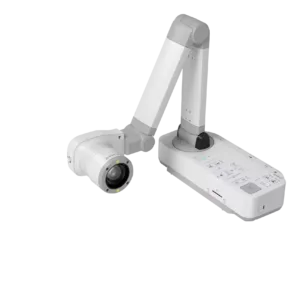

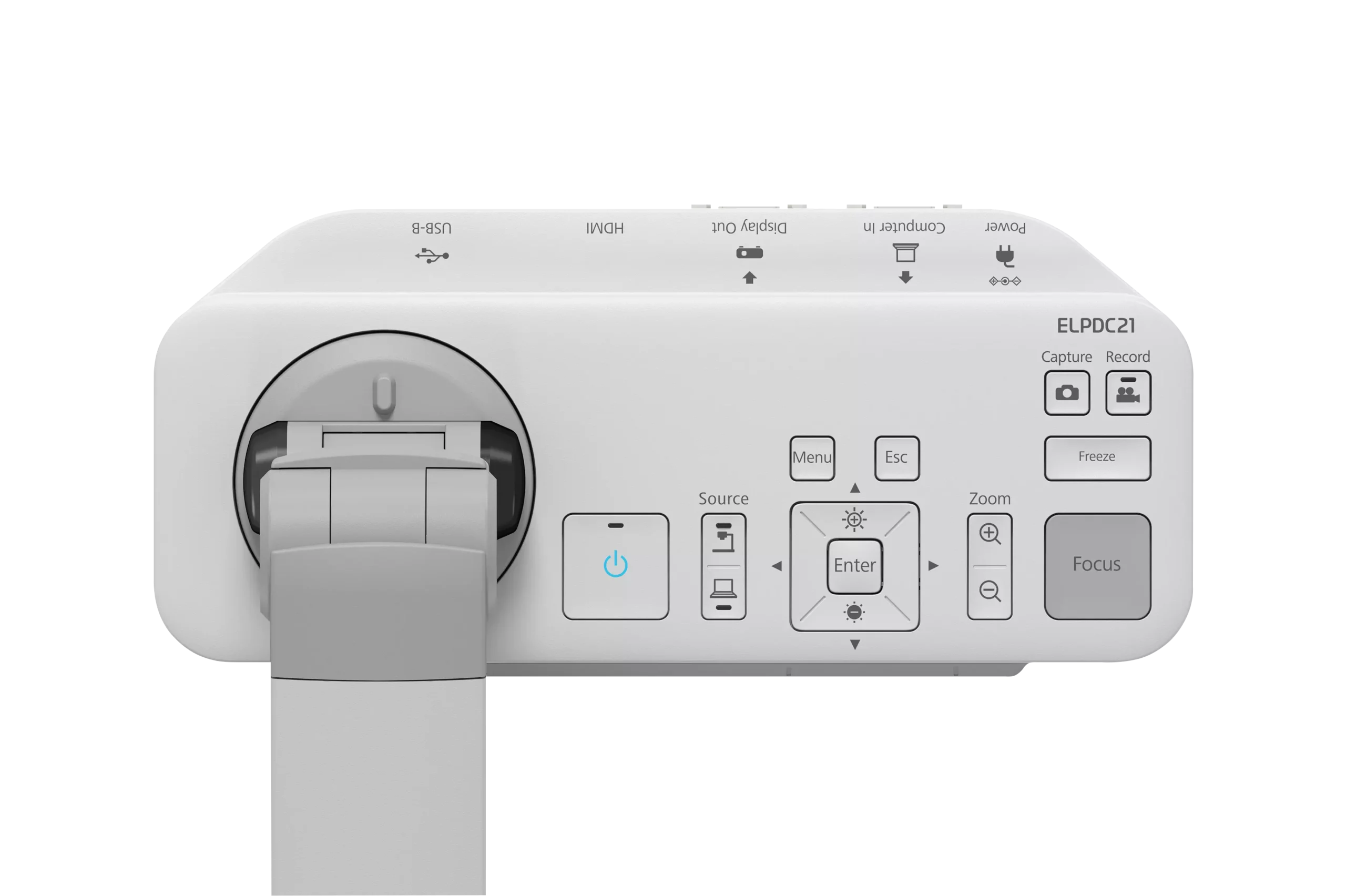

Epson ELP-DC21



  • 為優質的課堂提供特寫細節 – 10倍數碼變焦加12倍光學變焦
  • 驚人的清晰度和色彩 – 高清1080p輸出分辨率
  • 高級連接 – 高清晰度視頻的HDMI連接
  • 分享放大圖像 – 包括顯微鏡適配器;支持多款標準顯微鏡
  • 記錄和共享音頻/視頻課程 – 內置麥克風和附帶的軟件;一鍵式A / V錄製
  • 超平滑的視頻性能 – 每秒30幀(fps),1080p幀速率
  • 攝取,保存和顯示圖像 – 支持SD卡和電腦
  • 方便的凍結和攝取按鈕 – 輕鬆暫停和/或恢復圖像
分類: 標籤:


CAMERA Pick-up Device 1/2.7″ CMOS Sensor
Effective Pixels 2MP*
Native Resolution 1080p
Aspect Ratio 16:9
Frame Rate Maximum 30fps
Output Resolution Analogue: SXGA / XGA / WXGA / 1080p
USB : VGA / SVGA / XGA / SXGA / WXGA / 720p / 1080p
HDMI : 480p / 720p / 1080p
Illumination White LED x 2 (Variable LED Light)
Brightness 250lx or above (at A3 shooting area)
OPTICS Lens Optical Zoom f/3.4-5
Shooting Area Maximum 297 x 526 mm at 1080p output resolution
Zoom 12x Optical Zoom
10x Digital Zoom
Illumination White LED x 2
Focus Auto
White Balance Yes (Auto)
Exposure Yes (Auto)
Brightness control Off, Middle, High
Image Rotation Yes
Image Freeze Yes
Source Search Yes
Aspect Ratio Yes (Auto)
Digital Scroll Pan/Tilt Yes
Flicker Reduction Yes (50Hz, 60Hz)
Negative/Positive Conversion Yes
Colour & Black & White Selection Yes
Split Screen Yes
Time Lapse Yes
Microscope View Yes (Microscope Adaptor Included)
SD Card Slot Yes
Still Image Saving Formats & Slideshow Capture: JPEG (Resolution: 1920 x 1080)
Slideshow : JPEG (Resolution 7680 x 5760)
Video Movie Video Capture & Play Capture: AVI (Motion JPEG + PCM)
Resolution: 720p
File size: up to 2GB
Input VGA, in-built MIC
Dimensions (Open) (DxWxH) 502 x 270 x 328 mm

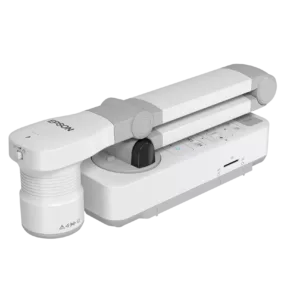

Dimensions (Closed) (DxWxH) 120 x 375 x 122 mm
Weight 2.6kg
Kensington Lock Yes
Power Supply Voltage 100 – 240V AC
Power Frequency 50/60Hz
Output Voltage of AC Power Adapter DC 12V
Power Consumption(Standby Mode) Less than 0.5W
PC applications* Easy Interactive Tools Ver 4.11 (for Windows)
Easy Interactive Tools Ver 4.10 (for Mac OS X)
